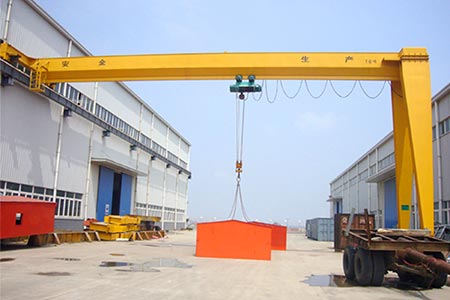

BMH model electric gantry crane

  • BMH model electric gantry crane
Main Parameter
  • span:5~20m
  • Lifting weight:2~16t
  • Lifting height:6m
  • Work class:A4
Cranes provide customized services
E-mail：sale@cecranes.com
WhatsApp：+86-13303801967
  • ● Certification Nucleon Crane has been audited by many international authority such as CE/ISO/SGS/BV/GOST/RTN/TUV and so on.
  • ● Packaging Details Our marine crane normal export package:Wooden pallet,Rack wooden,20' and 40' container,Nude or According to your demands.
  • ● Delivery Detail Shipped in 20 days after payment.

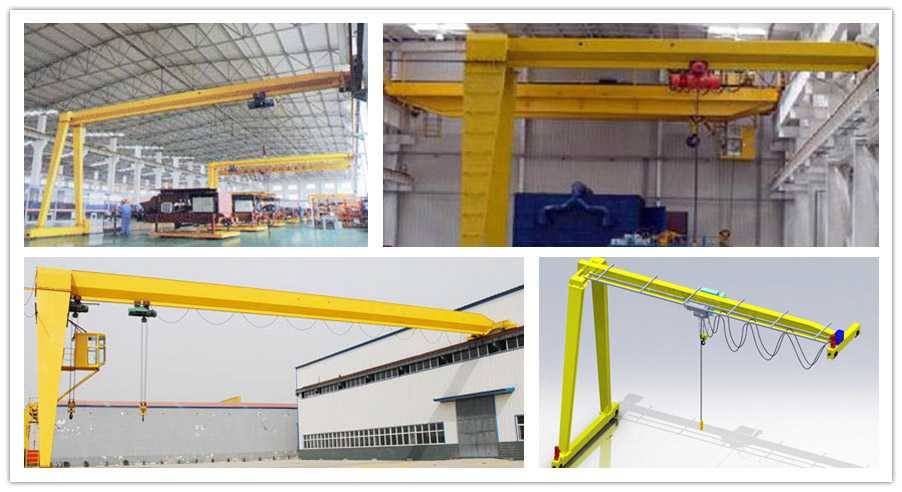

Electric hoist semi-gantry crane with electric hoist complement with CD1/MD1 type electric hoist for use, is a middle-small size crane. This product is a general purpose cranes, used for machine shop materials handling. Lower beam special reducer can make crane's inside working space be more.

According to its characteristics can be divided into the following types:

BMH------Single girder semi-gantry crane with electric hoist

rated lifting weight 0.5~16t

BMH iｰ-----Single colum semi-gantry crane with electric hoist

rated lifting weight 0.5~5T

BMHN-----European-style semi-gantry crane

rated capacity 0.5~10T

Cap.

t

2

3

5

10

16

Span

m

5m~20m

Track height

m

6m

Working system



A4

Recommended Rail



P24

P24

P38

P38

P38

Power supply



380V ~415V 50HZ 3PH

Crane weight

t

2.2T-3.78T

2.5T-4.5T

2.78T-4.8T

3.8T~6.8T

4.6T~8.5T

Max. Wheel load

kn

17.5~21.7

23.2~28.3

24.2~39.7

63.9~72.5

96.9~107.6

Use the special gear box can make the workshop widely

Maintenance easy and economic

Control and installation easy

Small volume and light weight

Crane compact structure
